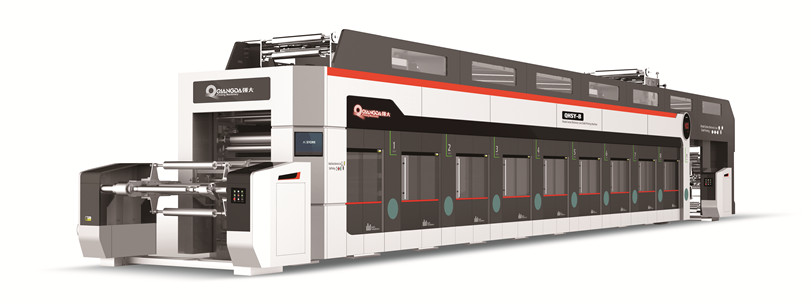

QHSY-B Model Electronic Shaft Water-Based Ink Rotogravure Printing Machine

Features
Use
Technical parameter
Download

Electronic shaft driven, each color unit is driven by one servo motor.
Fully enclosed structure, achieve factory workshop odorless pollution.
Stand-alone console, touch screen concentrated control.
Multiple independent full automatic tension control,dancing roller inspection.
Shaft-less printing cylinder loading.
Integral ink scraping mechanism
Pre-registration function,vertical and horizontal automatic registration control system.
Energy-efficient water-based ink drying system
Optional heating source:electricity, natural gas, steam,thermal oil.

This machine is suitable for multi-color continuous printing for roll material in good printing performance such as Cigarette pack, cork paper,liquid paper box,BOPP,PET, PVC,PE etc...

型号	Model	QHSY-B 850/8色	QHSY-B 1050/8色	QHSY-B 1250/8色
印刷材料宽度	Max. printing material width	800mm	1000mm	1200mm
印刷长度	Printing cylinder length	380-1000mm	380-1000mm	380-1000mm
印刷最高速度	Max printing speed	300m/min	300m/min	300m/min
放卷最大直径	Max unwinder diameter	800mm	800mm	800mm
收卷最大直径	Max rewinder diameter	800mm	800mm	800mm
总功率	Total power consumption	390KW	420KW	450KW
机器重量	Machine weight	40吨	43吨	48吨
外型尺寸（LWH）	Machine overall size	2400044004500mm	2400046004500mm	2400048004500mm
